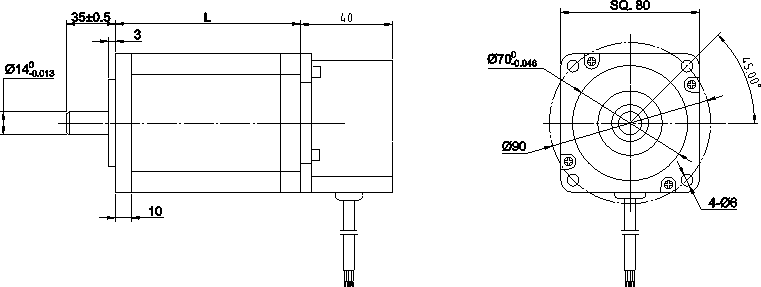

General Specifications
| Winding type | |
|---|---|
| Hall effect angle | |
| YWE | 120 Deg. Electrical angle |
| Radial play | |
| YWE | 0.025mm / 460g |
| End play | |
| YWE | 0.025mm / 400g |
| Max. radial force | |
| YWE | 220N @ 20mm from the flange |
| Max. axial force | |
| YWE | 60N |
| Insulation class | |
| YWE | B |
| Dielectric strength | |
| YWE | 500VDC for one minute |
| Insulation resistance | |
| YWE | 100MΩ min., 500VDC |
| Winding type | YWE |
| Hall effect angle | 120 Deg. Electrical angle |
| Radial play | 0.025mm / 460g |
| End play | 0.025mm / 400g |
| Max. radial force | 220N @ 20mm from the flange |
| Max. axial force | 60N |
| Insulation class | B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩ min., 500VDC |
Performance Data
| Model | |
|---|---|
| Number of poles | |
| Units | |
| Units | |
| 80ZW3S98C25 | 8 |
| Number of phase | |
| Units | |
| Units | |
| 80ZW3S98C25 | 3 |
| Rated voltage | |
| Units | VDC |
| Units | VDC |
| 80ZW3S98C25 | 48 |
| 80ZW3S122C30 | 48 |
| 80ZW3S150E20 | 310 |
| 80ZW3S160E25 | 310 |
| Rated speed | |
| Units | RPM |
| Units | RPM |
| 80ZW3S98C25 | 2500 |
| 80ZW3S122C30 | 3000 |
| 80ZW3S150E20 | 2000 |
| 80ZW3S160E25 | 2500 |
| Continuous stall torque | |
| Units | N.m |
| Units | N.m |
| 80ZW3S98C25 | 1.56 |
| 80ZW3S122C30 | 2.9 |
| 80ZW3S150E20 | 4.2 |
| 80ZW3S160E25 | 4.8 |
| Rated torque | |
| Units | N.m |
| Units | N.m |
| 80ZW3S98C25 | 1.3 |
| 80ZW3S122C30 | 2.4 |
| 80ZW3S150E20 | 3.5 |
| 80ZW3S160E25 | 4 |
| Rated power | |
| Units | W |
| Units | W |
| 80ZW3S98C25 | 340 |
| 80ZW3S122C30 | 754 |
| 80ZW3S150E20 | 733 |
| 80ZW3S160E25 | 1047 |
| Peak torque | |
| Units | N.m |
| Units | N.m |
| 80ZW3S98C25 | 3.8 |
| 80ZW3S122C30 | 7.1 |
| 80ZW3S150E20 | 10.5 |
| 80ZW3S160E25 | 12 |
| Peak current | |
| Units | A |
| Units | A |
| 80ZW3S98C25 | 28.3 |
| 80ZW3S122C30 | 62.8 |
| 80ZW3S150E20 | 9.5 |
| 80ZW3S160E25 | 13.5 |
| Torque constant | |
| Units | Nm/A |
| Units | Nm/A |
| 80ZW3S98C25 | 0.121 |
| 80ZW3S122C30 | 0.068 |
| 80ZW3S150E20 | 0.042 |
| 80ZW3S160E25 | 0.121 |
| Back E.M.F | |
| Units | V/KRPM |
| Units | V/KRPM |
| 80ZW3S98C25 | 10 |
| 80ZW3S122C30 | 8.8 |
| 80ZW3S150E20 | 77.5 |
| 80ZW3S160E25 | 65.7 |
| Rotor inertia | |
| Units | g.c㎡ |
| Units | Kg.c㎡ |
| 80ZW3S98C25 | 1.05 |
| 80ZW3S122C30 | 1.82 |
| 80ZW3S150E20 | 2.63 |
| 80ZW3S160E25 | 2.97 |
| Body length | |
| Units | mm |
| Units | mm |
| 80ZW3S98C25 | 98 |
| 80ZW3S122C30 | 122 |
| 80ZW3S150E20 | 150 |
| 80ZW3S160E25 | 160 |
| Voltage range | |
| Units | VDC |
| Units | VDC |
| 80ZW3S98C25 | 12~310 |
| Speed Range | |
| Units | RPM |
| Units | RPM |
| 80ZW3S98C25 | 1000~3000 |
| Weight | |
| Units | Kg |
| Units | Kg |
| 80ZW3S98C25 | 3 |
| 80ZW3S122C30 | 3.5 |
| 80ZW3S150E20 | 4.1 |
| 80ZW3S160E25 | 4.3 |
| Model | Units | Units | 80ZW3S98C25 | 80ZW3S122C30 | 80ZW3S150E20 | 80ZW3S160E25 |
|---|---|---|---|---|---|---|
| Number of poles | 8 | |||||
| Number of phase | 3 | |||||
| Rated voltage | VDC | VDC | 48 | 48 | 310 | 310 |
| Rated speed | RPM | RPM | 2500 | 3000 | 2000 | 2500 |
| Continuous stall torque | N.m | N.m | 1.56 | 2.9 | 4.2 | 4.8 |
| Rated torque | N.m | N.m | 1.3 | 2.4 | 3.5 | 4 |
| Rated power | W | W | 340 | 754 | 733 | 1047 |
| Peak torque | N.m | N.m | 3.8 | 7.1 | 10.5 | 12 |
| Peak current | A | A | 28.3 | 62.8 | 9.5 | 13.5 |
| Torque constant | Nm/A | Nm/A | 0.121 | 0.068 | 0.042 | 0.121 |
| Back E.M.F | V/KRPM | V/KRPM | 10 | 8.8 | 77.5 | 65.7 |
| Rotor inertia | g.c㎡ | Kg.c㎡ | 1.05 | 1.82 | 2.63 | 2.97 |
| Body length | mm | mm | 98 | 122 | 150 | 160 |
| Voltage range | VDC | VDC | 12~310 | |||
| Speed Range | RPM | RPM | 1000~3000 | |||
| Weight | Kg | Kg | 3 | 3.5 | 4.1 | 4.3 |
