35HSM Stepper Motor -35mm(0.9 degree)

Contact us for a Quote »

General Specifications

Step Angle Accuracy ±20%
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80℃max （rated current, 2 phase on）
Ambient Temperature -20℃~+50℃
Insulation Resistance 100MΩ min，500VDC
Dielectric Strength 500VDC for one minute
Shaft Radial Play 0.02mm max（450g load）
Shaft Axial Play 0.08mm max（450g load）
Max. radial force 28N(20mm from the flange)
Max. axial force 10N
Rotation CCW
Insulation Class B(130℃)

Performance Data

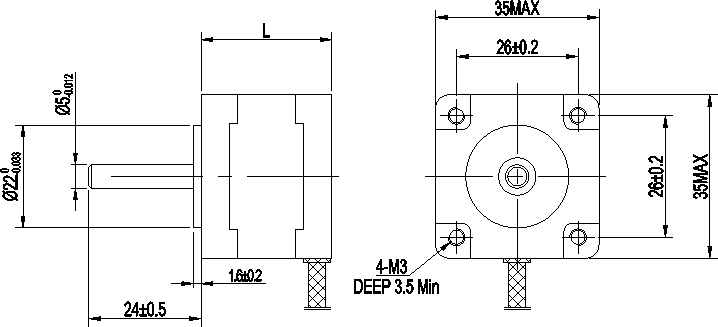

35hs

Model length
(mm) 		step angle deg resistance
(Ω) 		current
(A) 		voltage holding torque
(N.cm) 		lead wires/pins rotor inetia
（g.cm²） 		weight
（kg）
35HS20MF6 20 0.9° 6 0.5 3 7 4 10 0.11
35HS20MF10 20 0.9° 10 0.4 4 4 4 10 0.11
35HS20MF25 20 0.9° 25 0.45 11.25 7 4 10 0.11
35HS22MF10 22 0.9° 10 0.4 4 4 4 11 0.12
35HS22MF25 22 0.9° 25 0.45 11.25 7 4 11 0.12
35HS25MF45 25 0.9° 45 0.3 13.5 10 4 13 0.15
35HS27MF05 27 0.9° 22 0.5 11 12 4 14 0.16
35HS27MF50 27 0.9° 50 0.24 12 9.5 4 14 0.16
35HS27MF60 27 0.9° 60 0.19 11.4 7.5 4 14 0.16
35HS27MF405 27 0.9° 4.5 0.5 2.25 7 4 14 0.16
35HS33MF4 33 0.9° 4.5 0.5 2.25 7 4 20 0.18
35HS33MF12 33 0.9° 12 0.5 6 15 4 20 0.18
35HS33MF88 33 0.9° 88 0.14 12.32 9.5 4 20 0.18
35HS34MS70 34 0.9° 70 0.1 7 4.8 6 20 0.18
