35HSD Stepper Motor -35mm(1.8 degree)

Contact us for a Quote »

General Specifications

Step Angle Accuracy ±5%（full step， no load）
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80℃max （rated current, 2 phase on）
Ambient Temperature -20℃~+50℃
Insulation Resistance 100MΩ min，500VDC
Dielectric Strength 500VDC for one minute
Shaft Radial Play 0.02mm max（450g load）
Shaft Axial Play 0.08mm max（450g load）
Max. radial force 28N(20mm from the flange)
Max. axial force 10N
Rotation CCW
Insulation Class B(130℃)

Performance Data

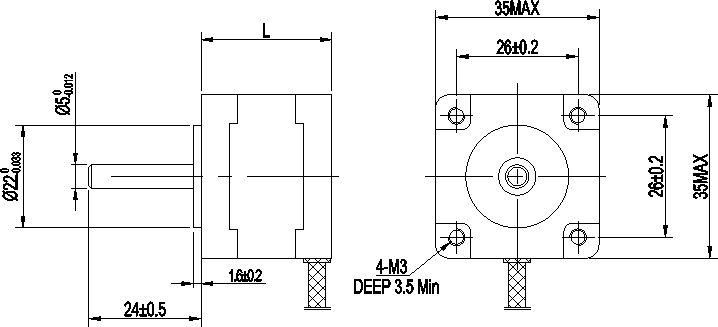

35hs-1

Model length
(mm) 		step angle deg resistance
(Ω) 		current
(A) 		voltage holding torque
(N.cm) 		lead wires/pins rotor inetia
（g.cm²） 		weight
（kg）
35HS20DF4 20 1.8° 4 0.8 3.2 5 4 10 0.11
35HS20DF25 20 1.8° 25 0.45 11.25 7 4 10 0.11
35HS20DV25 20 1.8° 25 0.4 10 5.5 5 10 0.11
35HS20DS25 20 1.8° 25 0.4 10 5.5 6 10 0.11
35HS22DE10 22 1.8° 10 0.5 5 5 8 11 0.12
35HS25DF05 25 1.8° 5 0.5 2.5 6 4 12 0.13
35HS25DF10 25 1.8° 10 0.4 4 5 4 12 0.13
35HS25DV20 25 1.8° 20 0.2 4 5.5 5 12 0.13
35HS27DF05 27 1.8° 22 0.5 11 12 4 14 0.15
35HS27DF07 27 1.8° 4.5 0.5 2.25 7 4 14 0.15
35HS27DF10 27 1.8° 125 0.1 12.5 7.5 4 14 0.15
35HS27DS80 27 1.8° 80 0.16 12.8 8 6 14 0.15
35HS27DS01 27 1.8° 13 0.4 5.2 6 6 14 0.15
35HS27DS03 27 1.8° 10 0.8 8 12 6 14 0.15
35HS33DF24 33 1.8° 24 0.5 12 18 4 20 0.18
35HS33DF208 33 1.8° 2.8 1 2.8 15 4 20 0.18
35HS34DS03 34 1.8° 20 0.3 6 6 6 20 0.18
35HS34DS70 34 1.8° 70 0.1 7 5 6 20 0.18
35HS34DS305 34 1.8° 3.5 1 3.5 13 6 20 0.18
35HS52DF608 52 1.8° 6.8 0.8 5.44 18 4 50 0.28
